Products > packing machine > > Pillow packing machine
Product name : Pillow packing machine
Item : DBW-250B
 Enlarge Image                   Back
←[Previous Product]


Details:

Application:

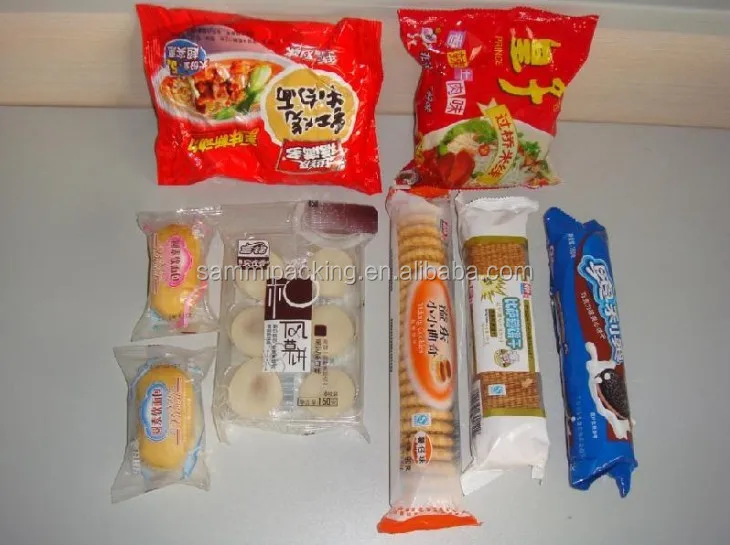

 Suitable for the solid object with regular form. Such as biscuit, bread, sweet, commodities and industrial parts and so on. The bulk cargos is put in a box and form a regular object, then to be packed.

 Structure function:

 1:Touching controller with person-machine interface, parameter enacted quickly, high speed and high efficiency
2:Adopting the tracing technology through photoelectricity, with digital input and sealing and cutting position nicely.
3:Diagnosing the troublesome and indicating to give an alarm
4:Constant-temperature adjusting, brainpower controlling and being suitable for all kinds of packaging materials.
5:Controlled by Double frequency conversion, the bag length can be cut with the enacting To finish by one step, saving time and saving film.

Type
DBW—250B
DBW—350B/D
DBW—350B
DBW—350D
Film Width
MAX.250mm
MAX.350mm
Bag length
65-90mm or 120—280mm
90mm—220mm
56—190 or120—280mm
90—120 or150—330mm
Bag width
30—110mm
50—160mm
Product height
MAX.40mm
MAX.55mm
MAX.40mm
MAX.60mm
Film roll diameter
MAX.320mm
MAX.320mm
Packing speed
40—230 pack/min
MAX.320mm
Power
220V50/60HZ2.6KW
220V50/60HZ2.6KW
Machine size
(L)3770×(W)670×(H)1450mm
(L)4020×(W)800×(H)1450mm
Machine weight
800Kg
900Kg
