Principle

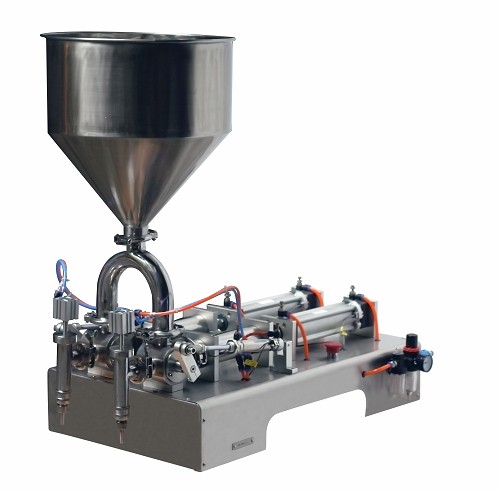

Double head cream filler is used for filling high viscosity cream,paste, ointment like toothpaste,tomato paste, garlic paste, chocklate paste,cosmetic cream,lotion and so on. It uses the piston pump to fill and regulates the filling scope by the cylinder stroke. it,s hoper type puts the materials into the hopper to fill. This machine has convenient and swift measurement, good shape and compact structure. The places contacting with the materials are made of high-quality stainless steel (usually using 304, the Medical 316L). The machines unique valve structure realizes the double purposes of ointment and liquid, which is the ideal and economical equipment for medicine, daily chemical products and fine chemical industry.
Description:
Used for medicine, daily chemical, food, pesticides and special industries; it is ideal filling equipment for high-viscosity cream,paste,ointment. Since the machine is working under the uncharged state, it is more security; humanized design fits for modern enterprises requirements, Small and exquisite in model, the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan AirTac. The part contacting materials is made of 316L stainless steel. Both filling volume and filling speed can be adjusted at will, filling accuracy is high. Filling head adopts anti-leakage.
Technical Parameter:
Technical Parameters:
Machine model |
G1WG-2Y-100 |
G1WG-2Y-300 |
G1WG-2Y-500 |
G1WG-2Y-1000 |
G1WG-2Y-3000 |
G1WG-2Y-5000 |
Filling speed |
10-35n/min(take water for example) |
|||||
Filling range |
10-100ml |
30-300ml |
50-500ml |
100-1000ml |
300-3000ml |
500-5000ml |
Air pressure |
0.4~0.6mpa |
|||||
Filling error |
±1% |
|||||
Machine size |
806(L) × 180(W) ×690(H)mm |
880(L) ×230(W) ×665(H)mm |
880(L) × 230(W) ×665(H)mm |
1065 (L) ×230(W) ×665(H)mm |
1250(L) ×400(W) ×300(H)mm |
1390(L) ×420(W) ×380(H)6mm |
Machine weight |
42 Kg |
45Kg |
48Kg |
52Kg |
64 Kg |
86 Kg |
Machine can offer customized according to customer request
Suitable products:
