Semi-automatic Round Bottle Labeling Machine with date coder

 Round bottle labeling machine with date printer (print vertically and horizontally)

This round bottle labeling machine with date printer can print the production date and batch number at the time of abeling on round bottle,it can print max 3 lines. max 15 letters/line. can print in vertical and horizontal, easy to change different print position.


Application:

Suitable for different size of adhesive label or adhesive film on all kinds of round bottle,High accuracy and high speed,dispensing & labeling automatically.

Suitable range: Round bottle, Round tank, Round barrel to self-adhesive labeling.



It is used in PET bottle, plastic bottle, glass bottle, Metal bottle and so on round bottle etc



 Product discription;

 1, Small structure takes up less space and easy to move and load.

 2, Good labeling precision and stability; Neat, no wrinkle, no bubble.

 3,It has powerful function. It can achieve circumferential position labeling and non-position labeling easily

 4,It satisfy the circumferential position labeling and non-position labeling on diameter between 12-120mm bottles.

 5, It is easy to use and adjust. The new workers can use or adjust it easily after simple training.

 6,Conveyer parts are completely covered to avoid the abnormal conditions which make the use safer.

 7, The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the labeling position freely. All these make it easy to change products and wind labels...
 8, Has 2 control methods: automatic and semi-automatic. Workers can choose either sensor control or feet step control for labeling according to reality.

 9, Whole equipment is mainly made of stainless steel and high level aluminum alloy. The whole structure is strong and harmonious.

10, Has fault stop function, production counting function.



Technical parameters:



Labeling precision	less than ±0.5mm
Efficiency	25-50 piece/minutes
The size of work-piece	10-150 mm in diameter
Tag width	8-150 mm
Tag length	15-315 mm
Power supply	220 V 50 HZ
The motor power	120 w
machine size	650 x 450 x 450 mm
weight	25KG



 The machine can be customized according to customer’s special requirement

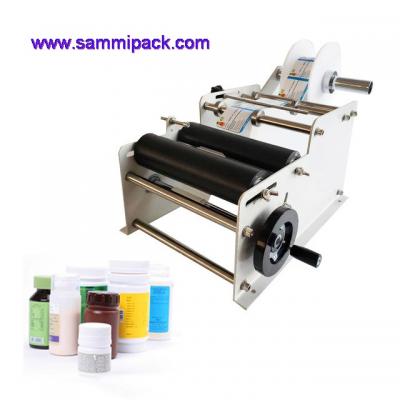

Machine pictures:
